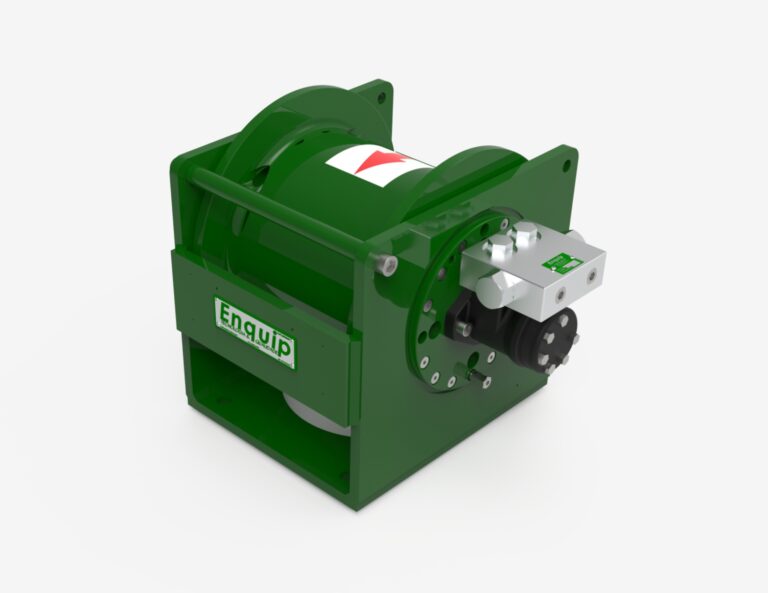

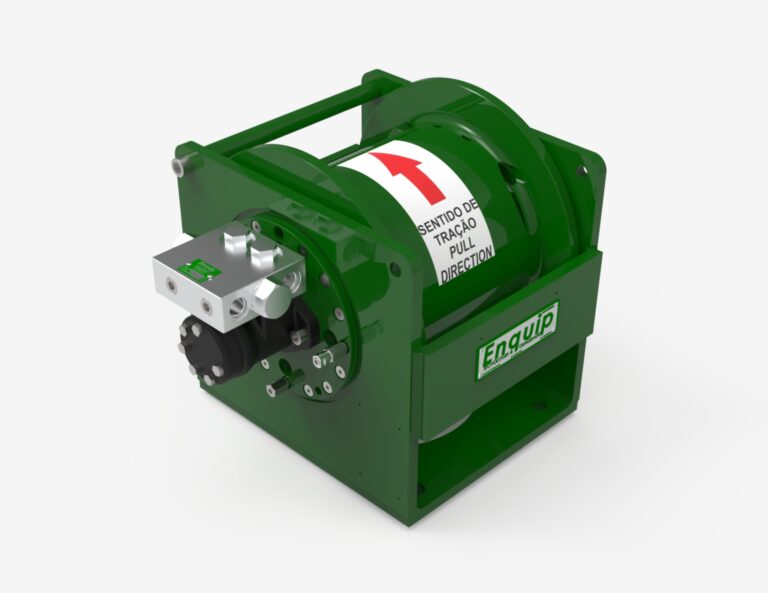

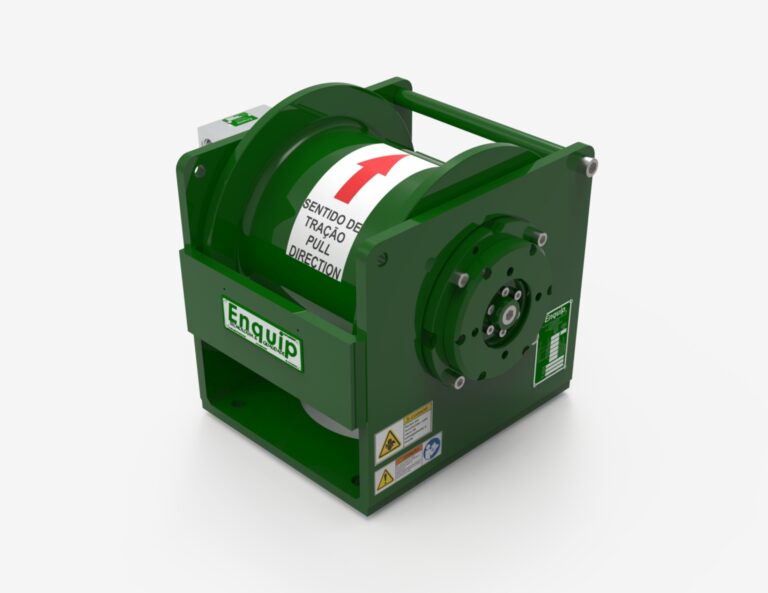

GHL 2050
- Rated Load Capacity: 11,020 Lbf
- Complies with ANSI B30.7 standard
- Compact and highly durable design
- Automatic multi-disc brake device normally applied by springs and hydraulically released. Allows the winch to brake the load even in case of hydraulic failures
- One-way anti-reverse clutch, providing greater safety to the application
- Highly compact planetary reducer, composed of heat treated alloy steel gears, providing long service life to the equipment
- Dynamic braking valve, counterbalance valve, allows smooth operation and precise load control
- Drum mounted on high-performance bearings, maximizing efficiency
- Self-Propelled Cranes
- Truck-Mounted Cranes
- Provision Marine Cranes
- Drilling Rigs
- Mining
- General Construction
- Different Gear Ratios
- Grooved Drum
- Last Wrap Brake
- Drum Protective Guard
- Press Roller mounted on the drum, assisting in wire rope management during spooling or unspooling
Performance with Ø1/2″ wire rope, pressure of 2,540 psi and flow rate of 16 GPM.
