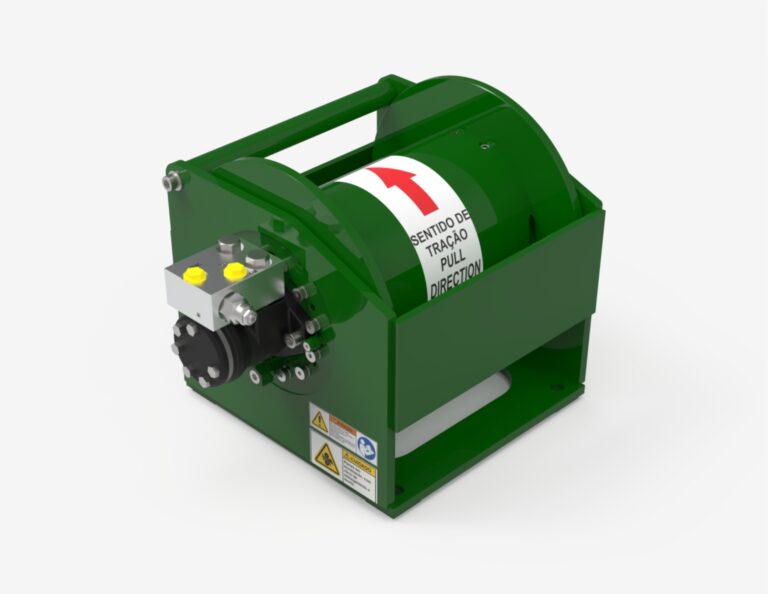

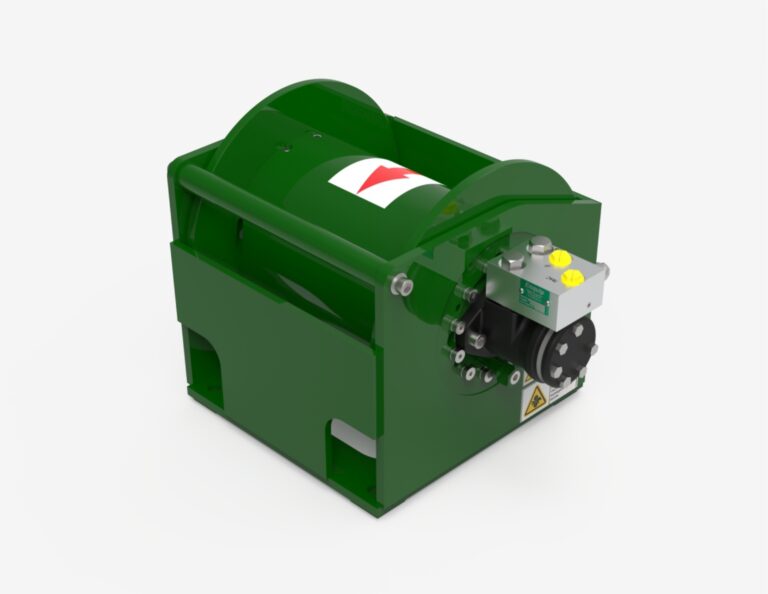

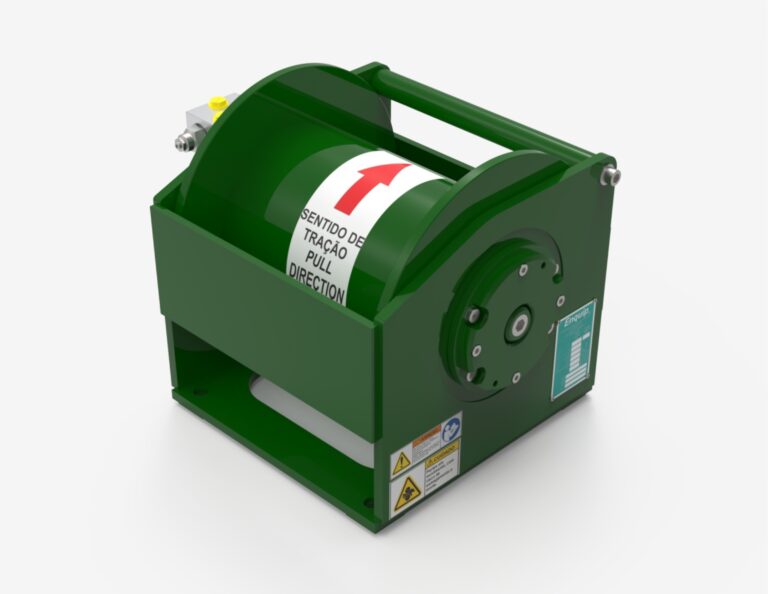

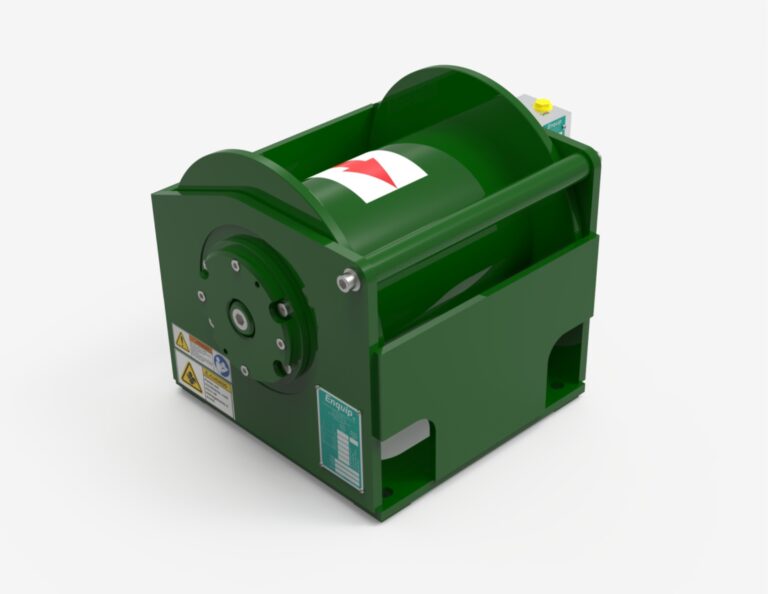

GHL 2040
- Rated Load Capacity: 8,820 Lbf
- Complies with ANSI B30.7 standard
- Compact and highly durable design
- Automatic multi-disc brake device normally applied by springs and hydraulically released. Allows the winch to brake the load even in case of hydraulic failures
- One-way anti-reverse clutch, providing greater safety to the application
- Highly compact planetary reducer, composed of heat treated alloy steel gears, providing long service life to the equipment
- Dynamic braking valve, counterbalance valve, allows smooth operation and precise load control
- Drum mounted on high-performance bearings, maximizing efficiency.
- Self-Propelled Cranes;
- Truck-Mounted Cranes;
- Provision Marine Cranes;
- Drilling Rigs;
- General Construction.
- Different Gear Ratios
- Grooved Drum
- Drum Protective Guard
1Performance with Ø1/2″ wire rope, pressure of 2,610 psi and flow rate of 13 GPM;
2Performance with Ø1/2″ wire rope, pressure of 2,610 psi and flow rate of 16 GPM.
