Man Riding Winches

  • Rated Load Capacity: 1.5 Ton. / 2.5 Ton. / 3 Ton. / 5 Ton.;
  • Compliance with DNV-OS-E101 standard (Section 5);
  • Hydraulic¹ or pneumatic² drive systems;
  • Compact and highly robust design;
  • Automatic multidisc brake device, spring-applied and pilot pressure-released. Allows the winch to safely brake the load even in case of hydraulic failure;
  • Integrated mechanical lock device (tertiary brake), end-of-stroke locking system (quaternary brake), and cable clamp (suitable for man-riding applications);
  • Unidirectional anti-reverse clutch, providing enhanced operational safety;
  • Highly compact planetary gearbox, featuring heat-treated alloy steel gears, ensuring long service life;
  • Hydraulic version equipped with dynamic counterbalance valve, enabling smooth operation and precise load control;
  • Pneumatic version equipped with dual automatic band brake, spring-applied and pneumatically released;
  • Drum mounted on high-performance bearings, maximizing operational efficiency.
  • Diving Bell Launch Gantries;
  • Oil & Gas Industry;
  • Refineries;
  • Heavy Construction.
  • Grooved drum;
  • Transport skid;
  • Motorized levelwind;
  • Hydraulic version with optional bi-directional local control panel;
  • Pneumatic version with optional remote control panel;
  • Pneumatic version with optional air treatment unit (Lubrifil Kit).

1Maximum working pressure: 180 Bar. Maximum flow rate: 60 LPM;
2Minimum working pressure: 7 Bar. Minimum flow rate: 20 m³/min.

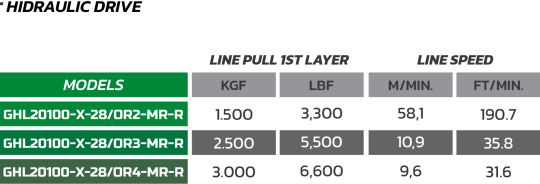

GUINCHO-ICAMENTO-PESSOAS-MODELOS.HIDR_.EN_

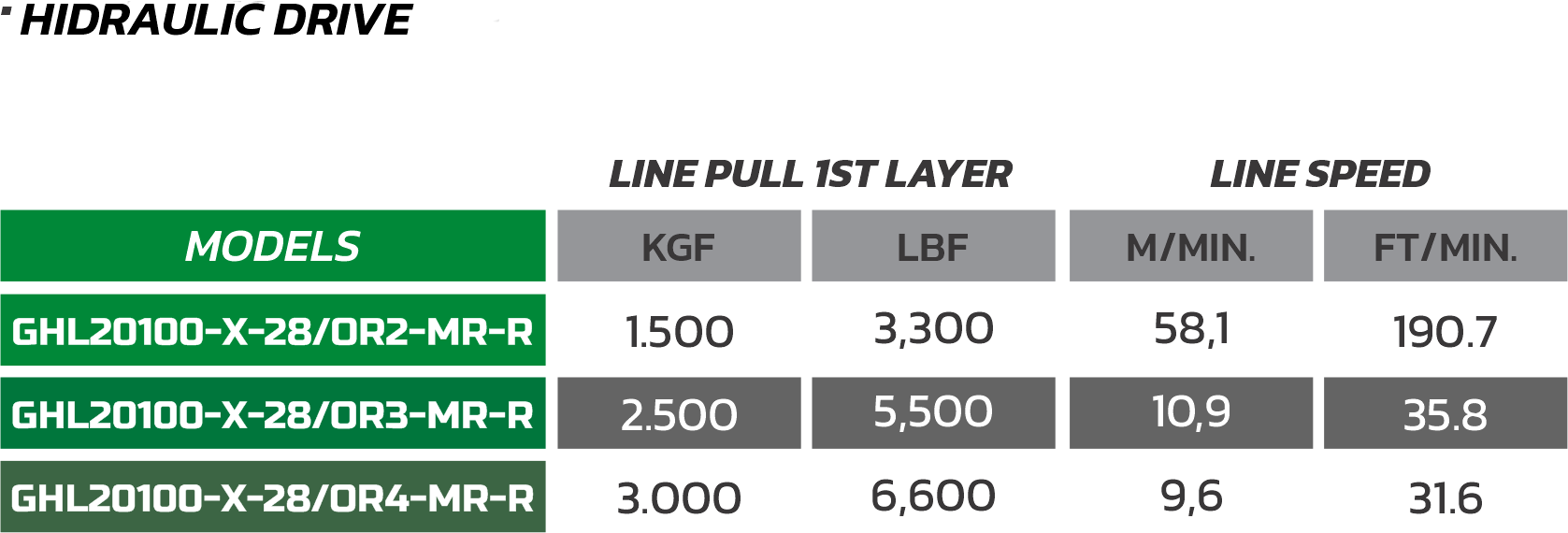

Performance with Ø 16 mm (5/8″) cable, orbital motor, 180 Bar pressure, and 60 LPM flow rate.

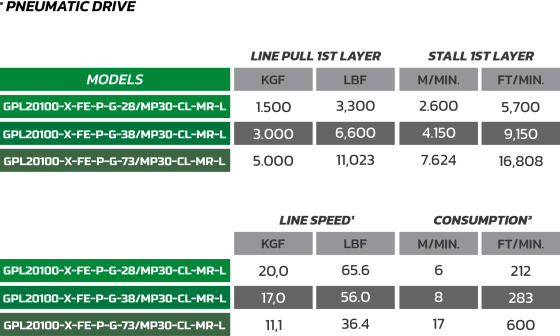

GUINCHO-ICAMENTO-PESSOAS-MODELOS.PNEU_.EN_

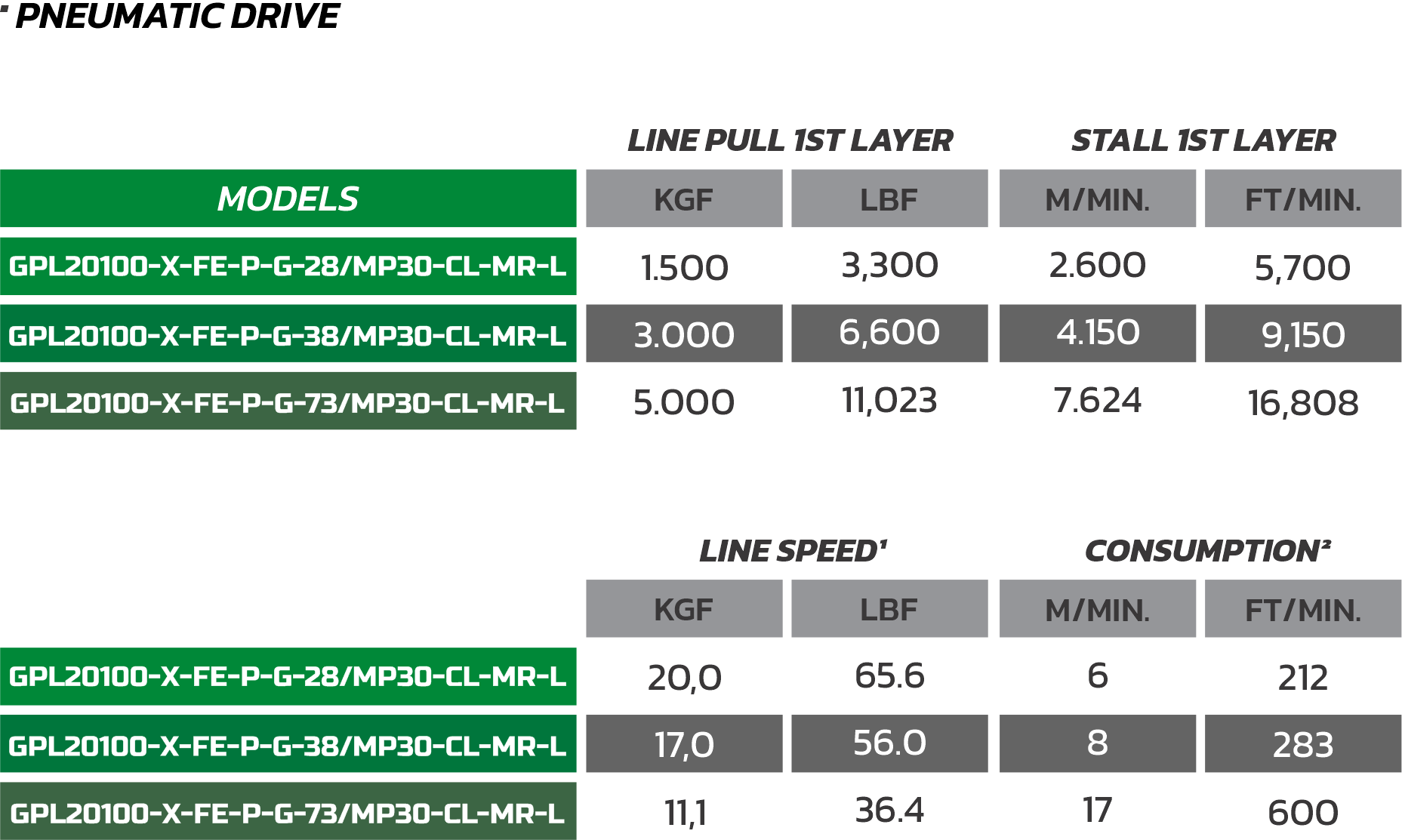

Performance with Ø 19 mm (3/4″) cable and 7 Bar pressure.

1Line speed under load (steady-state condition).
2Flow consumption @ Pulling – 1st Layer.

GUINCHO-ICAMENTO-PESSOAS-ARMAZENAMENTO.EN

Drum “X” (ID: 273 mm / OD: 600 mm / LW: 400 mm)

CATALOGUE
REQUEST QUOTATION
  • Rated Load Capacity: 1.5 Ton. / 2.5 Ton. / 3 Ton. / 5 Ton.;
  • Compliance with DNV-OS-E101 standard (Section 5);
  • Hydraulic¹ or pneumatic² drive systems;
  • Compact and highly robust design;
  • Automatic multidisc brake device, spring-applied and pilot pressure-released. Allows the winch to safely brake the load even in case of hydraulic failure;
  • Integrated mechanical lock device (tertiary brake), end-of-stroke locking system (quaternary brake), and cable clamp (suitable for man-riding applications);
  • Unidirectional anti-reverse clutch, providing enhanced operational safety;
  • Highly compact planetary gearbox, featuring heat-treated alloy steel gears, ensuring long service life;
  • Hydraulic version equipped with dynamic counterbalance valve, enabling smooth operation and precise load control;
  • Pneumatic version equipped with dual automatic band brake, spring-applied and pneumatically released;
  • Drum mounted on high-performance bearings, maximizing operational efficiency.
  • Diving Bell Launch Gantries;
  • Oil & Gas Industry;
  • Refineries;
  • Heavy Construction.
  • Grooved drum;
  • Transport skid;
  • Motorized levelwind;
  • Hydraulic version with optional bi-directional local control panel;
  • Pneumatic version with optional remote control panel;
  • Pneumatic version with optional air treatment unit (Lubrifil Kit).

1Maximum working pressure: 180 Bar. Maximum flow rate: 60 LPM;

2Minimum working pressure: 7 Bar. Minimum flow rate: 20 m³/min.

Performance with Ø 16 mm (5/8″) cable, orbital motor, 180 Bar pressure, and 60 LPM flow rate.

Performance with Ø 19 mm (3/4″) cable and 7 Bar pressure.

1Line speed under load (steady-state condition).
2Flow consumption @ Pulling – 1st Layer.

(*) Drum “X” (ID: 273 mm / OD: 600 mm / LW: 400 mm)
